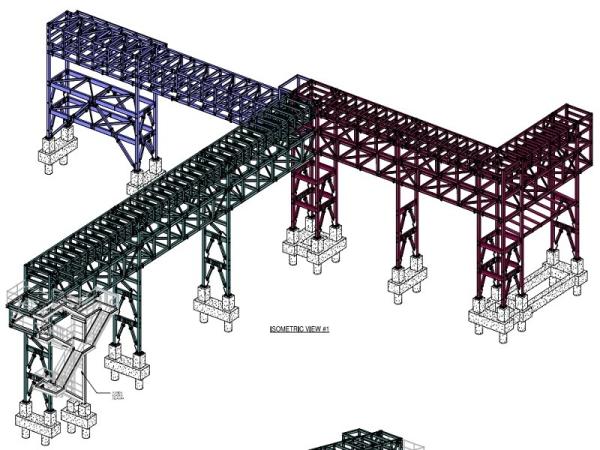

‌Modular Steel Pipe Rack System

‌

Core Features‌
✓ ‌Structural Capacity‌:

• 3-5 tiers, 6m column grids
• 800kg/m dead load + ASME B31.3 thermal compensation
  ✓ ‌Material Tech‌:
  • ASTM A572 Gr.50 steel
  • 3mm HDPE cladding for acid zones
  • 2hr fire-rated intumescent coating

‌Smart Build‌
▸ ‌Modular Design‌:

• 24m pre-assembled units with slip-fit connections
• Guided cantilever arms (300mm thermal movement)
  ▸ ‌Safety Embedded‌:
  • Blast-resistant bracing (5psi overpressure)
  • Class I Div 2 cable trays & OSHA guardrails

‌Performance‌
• 150% load tested • <0.02mm/yr corrosion rate
• L/300 deflection limit • 30dB EMI shielding

‌Certification‌
API 560 / ASME B31.3 / EN 1090-2 EXC4

‌Technical Snapshot‌
① ‌Build Time‌: 16 weeks vs 40w concrete
② ‌Cost‌: $380/m² (25-year lifecycle)
③ ‌Maintenance‌: 5-year coating warranty

OEM service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

150000M2 Manufacturing Area capable to take large volume

Sunway is a Chinese steel fabricator established in the year 2002, providing OEM steel structure for Construction Building, Solar Tracker, Chemical Plant, Power Plant, Mining & Cement equipment.

Sunway has passed international certificates including AISC, CE, CWB, JIS, ISO. Supply full package of steel works ready for erection on site. 70% of products exported to overseas, including Europe, North America and Australia, etc.

Sunway conducts digital management of the workshop. Through Tekla, Solidworks software and MES systems, the full traceability of product cycle is realized.

Besides the Automatic Intelligent Production Line for H beam & Box Column, the factory is well equipped with Laser Cutting Machine, Robot Welding Machine, Sawing Machine, Drilling Machine, Hydraulic Press Machine, Punching Machine, Shot-blasting machine and independent Painting workshop.

The typical products are Built-up H section, Steel Frame, Steel Truss, Solar tracker bracket, and Pipe Racking Structures.

Why choose Sunway?

OEM & Detailing service available.

A dedicated team of fast response;

EN1090 & AISC & CWB & JIS Certificated Quality;

Full production line for customized products;

Close to Sea port, Convenient for visit and delivery;

100,000M2 Manufacturing Area capable to take large volume;

Built on strength, passion and a steady pulse, we’re creating tomorrow ’s Building today. We are Sunway Steel, and we’re fabricating the Future.
